Made for personalization of sportswear and workwear - fast double heat press with extra freestanding printing plates for bulky textiles
- perfect for those who have to print voluminous textiles and sports bags etc.
- a special construction supports particularly freestanding printing plates
- optionally available cap set and printing plates in various sizes/formats
- acoustic signal indicating the automatic opening of heating plate
- 2 printing plates offer a fast and comfortable operating
- clear digital display, offering an easy data setting
- fast, efficient and energy saving heating tech.
- 2 years warranty on heat press
- 10 years on heating system
- transfer area: (2) x 40 x 50 cm
- alternatively, (2) x 45 x 60 cm
- high pressure – 8 bar
- counter function
- 3 programs
Discover your possibilities

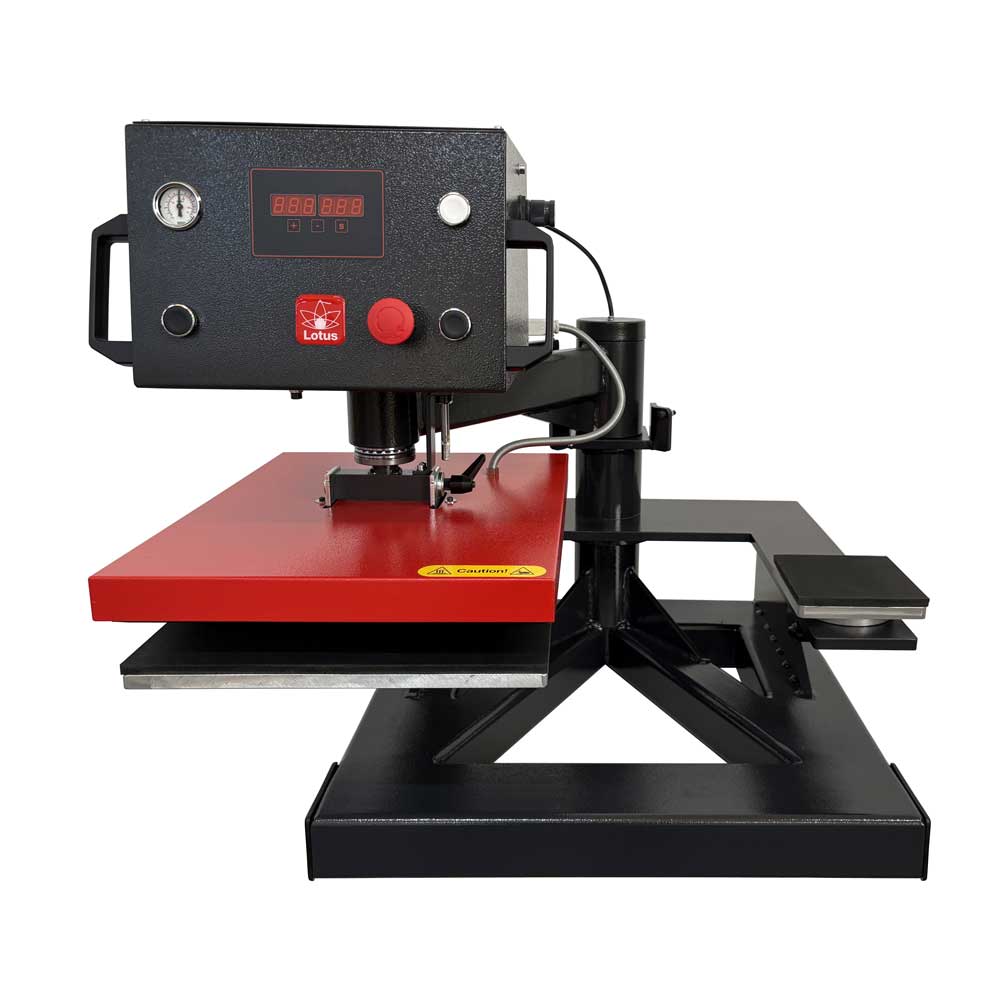

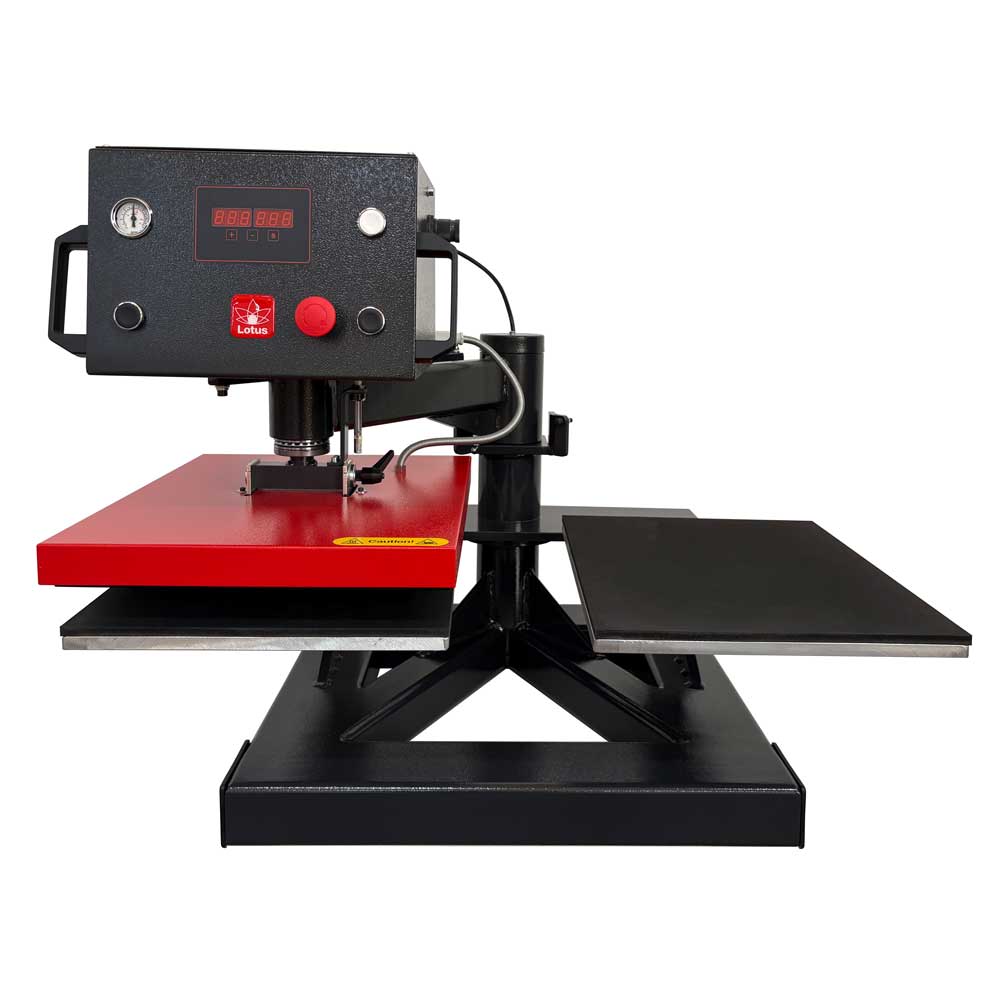

Heat Press for Bags, Backpacks and Bulky Textiles
The LTS 750 BAG-U was developed from the ground up with one clear objective: to offer the best solution on the market for heat transfer printing on deep, bulky and voluminous textiles.
Where conventional heat presses reach their limits, the BAG-U really comes into its own.
Designed for volume – not compromise
At the core of the BAG-U are the completely free-standing lower platens. They allow bags, backpacks, sports bags and travel bags to be mounted and positioned easily – with no material build-up, no creasing and no loss of pressure.
Only the area that actually needs to be printed rests on the platen. Zips, seams, padding or pre-applied motifs remain outside the pressure zone.
The result: clean transfers, consistent quality and significantly reduced waste.
Two pressing stations for maximum productivity
The pneumatic heat press is equipped with two independent platens. While one side is pressing, the other side can already be prepared.
This saves valuable time – especially for production runs.
Interchangeable platens – one system, many applications
Thanks to its modular design, platens in different sizes and formats can be changed quickly and without tools.
A single machine therefore covers a wide range of applications:
- Bags, backpacks, sports and travel bags
- Workwear and sportswear
- Shirts, trousers, caps
- Transfer and sublimation media
Mikanit 2.0 heating technology
The proven Mikanit 2.0 heating system ensures:
- fast heat-up times
- even, consistent temperature across the entire surface
- high energy efficiency
- long service life
The heating elements can be replaced individually – economical, sustainable and service-friendly.
Lotus provides a 10-year warranty on all heating components.
Compared to many heat presses on the market, energy consumption is measurably lower.
Intuitive digital control
The clear digital display allows precise control of temperature, time and press cycles.
Three programmes can be stored – ideal for flock, flex transfers and sublimation.
An integrated job counter supports production monitoring.
Simple, safe, ergonomic
- Start at the push of a button
- Automatic lowering, locking and opening of the heating platen
- Wide-angle opening for optimal visibility and easy positioning
- Optional speed controller
- Acoustic and visual safety signals
- Reduced risk of burns thanks to the wide opening angle
Pre-press and post-press function
The integrated pre-press and post-press function allows textiles to be smoothed or fixed without changing the actual transfer parameters.
Any press cycle can be shortened flexibly via a stop button.
Dimensions
- Pressing area: 40 × 50 cm
- Optional: 45 × 60 cm (model LTS 760 BAG-U)
Customisation & service
On request, we adapt the LTS 750 BAG-U technically and functionally to your requirements.
Would you like to test the machine before purchasing?
Send us your samples or visit our showrooms in Milan or Berlin.
Spare Parts & Accessories of LTS 750 BAG U
Printing plates
Cap set
Spare parts
Tools
Technical data of LTS 750 BAG U
| Transfer area | [2x] 40 x 50 cm |
| Digital timer | 0 – 999 sec |
| Temperature | 0 – 250 ° C |
| Heating output | 2000 W |
| Voltage | 220 V |
| Weight | 110 kg |
| Contact pressure | 1.2 – 1.5 kg/cm2 or 2.5 – 8 bar |
